(ADW-LC400) Máquina de corte láser de madera contrachapada de plano de 400 vatios con velocidad de corte rápida, 30-35 metros/hora, madera contrachapada de 18 mm por 400 vatios Stante Plan de madera contrachapada de madera contrachapada; Alta precisión, la precisión de corte es +-0.05 mm; Corte liso, corte láser CNC CO2; Ruido inferior. China Adewo ha tenido éxito para muchas empresas nacionales y extranjeras para proporcionar una máquina de corte láser avanzada, una máquina de benderos automático, una máquina de corte arrugada, soporte técnico y excelente servicio de ventas.
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality 400 Watts Stante Plane Plywood Laser Cutting Machine. We look forward to cooperating with you.

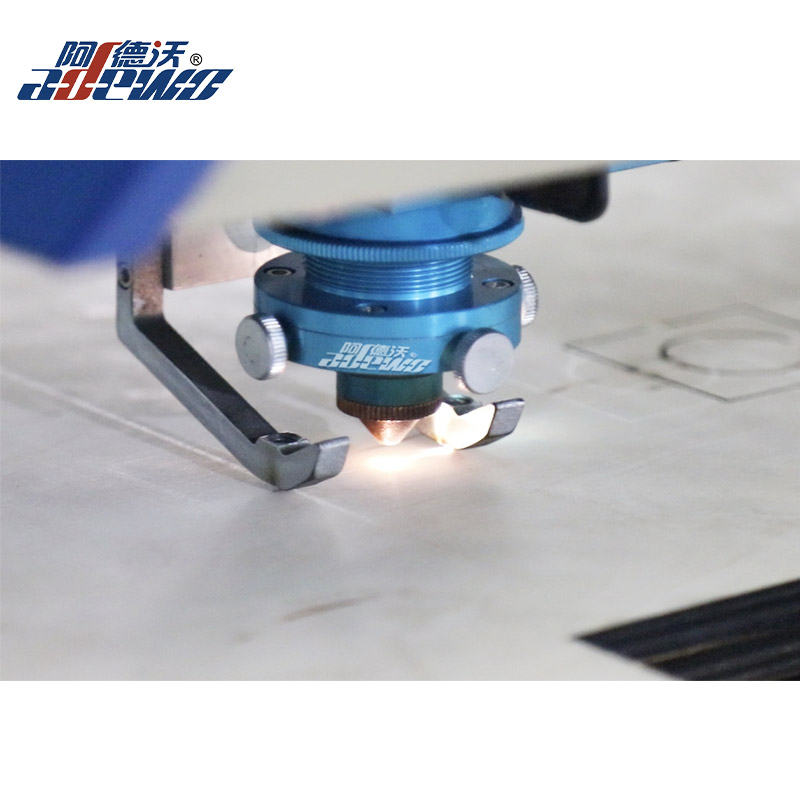

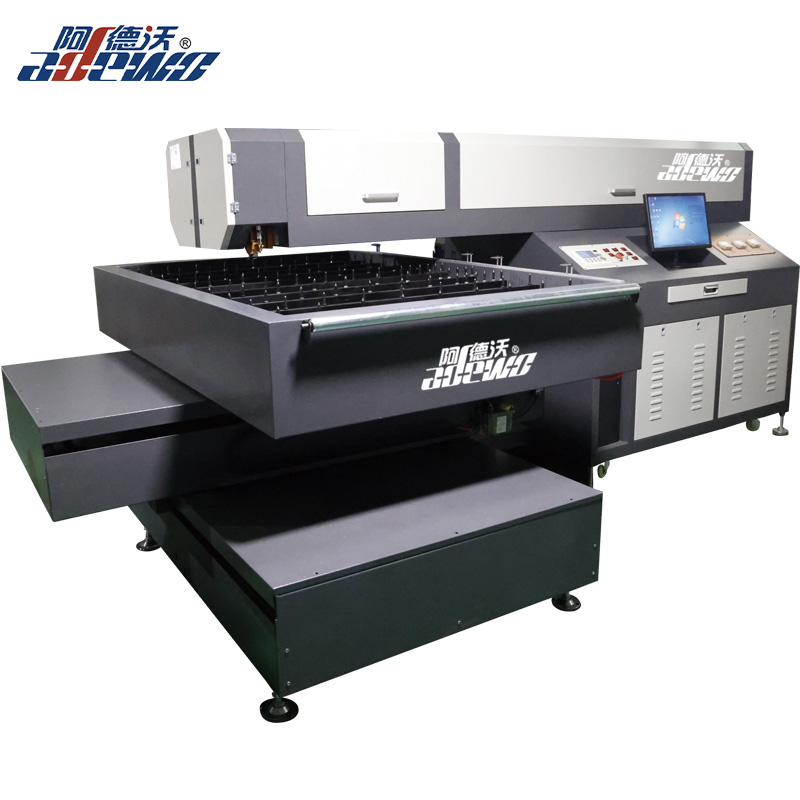

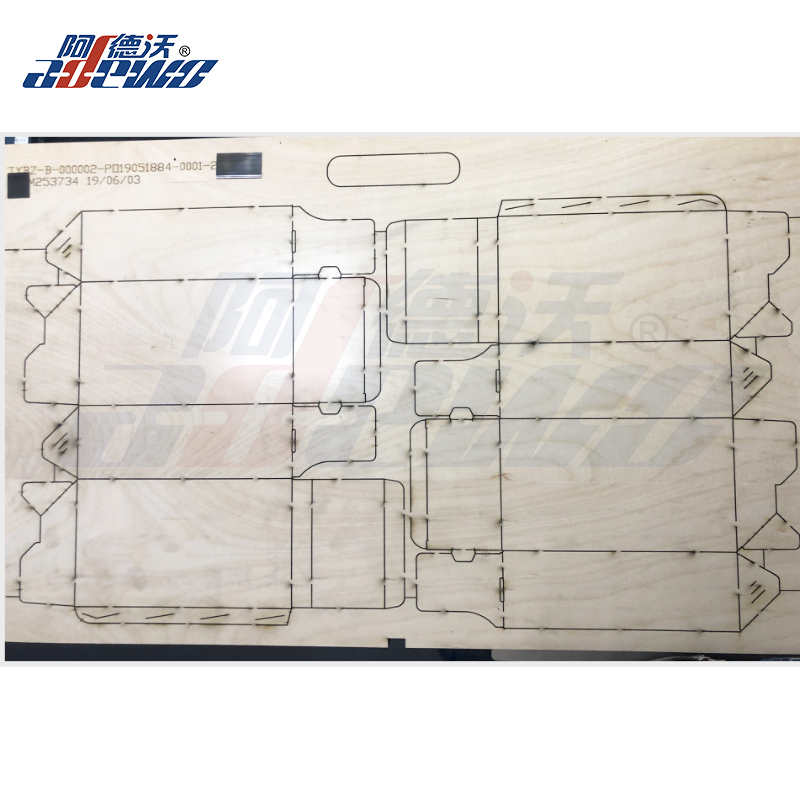

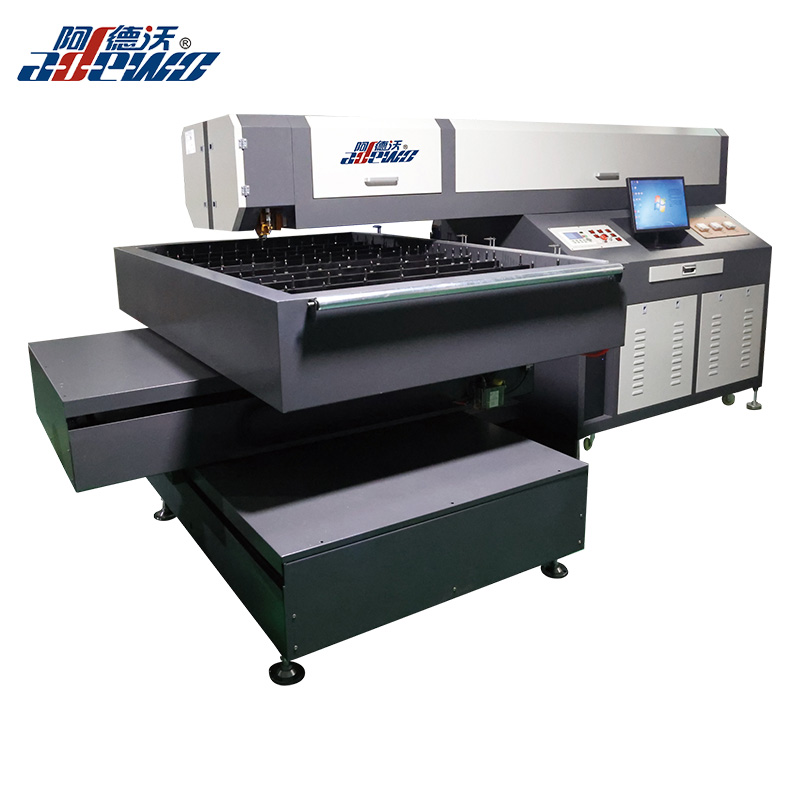

Picture of (ADW-LC400) 400 watts Stante Plane Plywood Laser Cutting Machine for reference:
2.Imported precision ball screw driving (more precise than general one), with the error of precision electronic mould of 0.05mm.
3.Low electricity consumption and low cost of 400watts Stante Plane Plywood Laser Cutting Machine, 220V single-phase electricity, 3KW/h (3000w power machine)
4.High-strength stable machine tool without deformation for long term working.
5.Real time regulation: Users can regulate the laser power, according to needs to improve the cutting effect.
Model No. |
ADW-LC-400 |
Laser power |
400 watts |
Working area |
Width1200mm x Length1800mm |
Driving style |
Laser head moved |
Cutting speed |
400watts:30-35 meters/hour,18mm plywood |
Cutting materials and thickness |
6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel. |
Environment temperature |
5℃-35℃ |
Cooling water temperature |
5℃-30℃ |

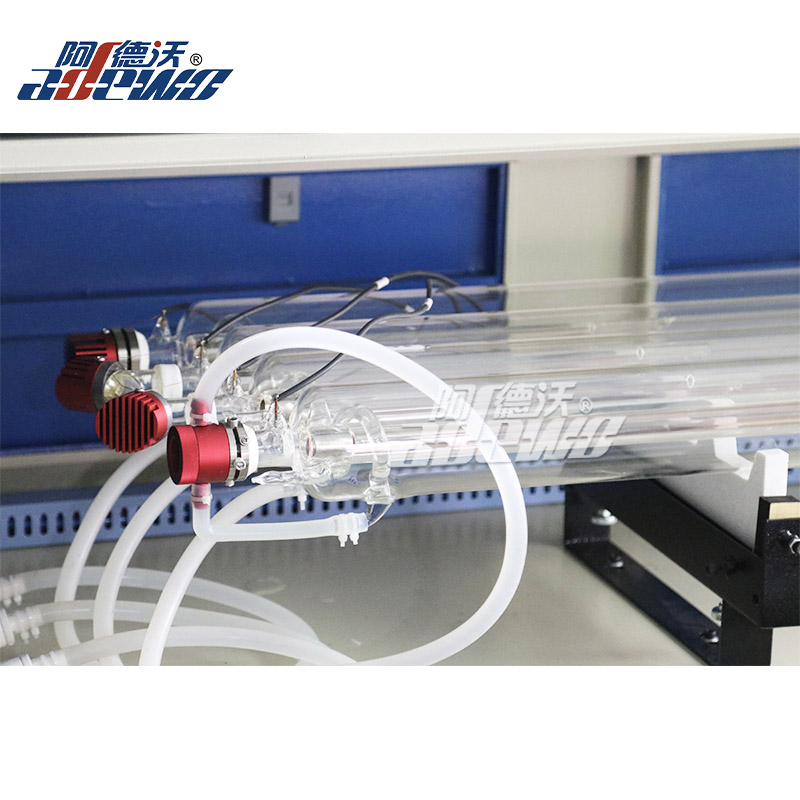

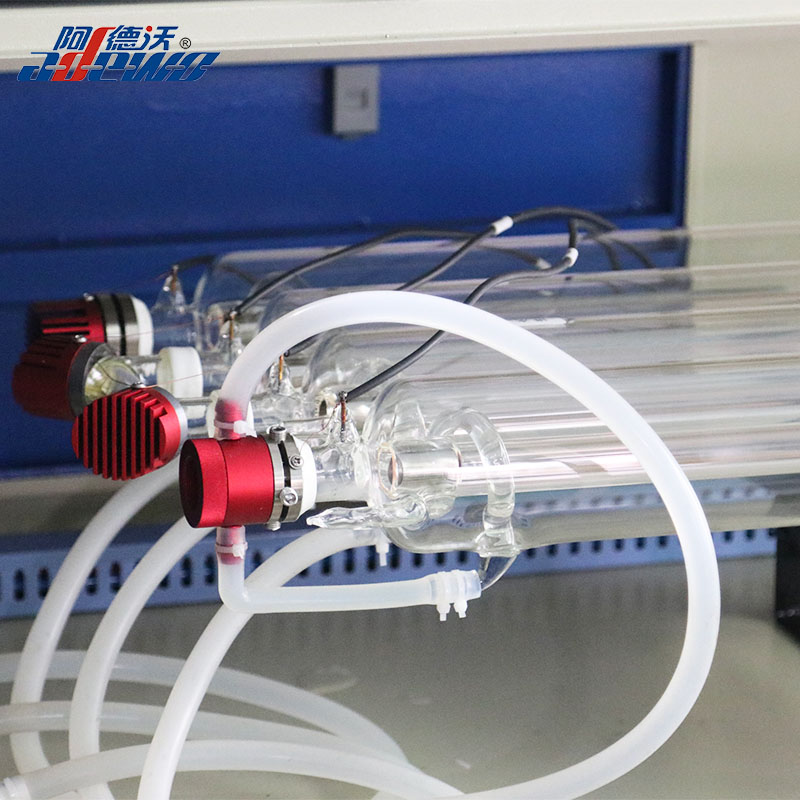

Laser type |
CO2 sealed of glass laser |

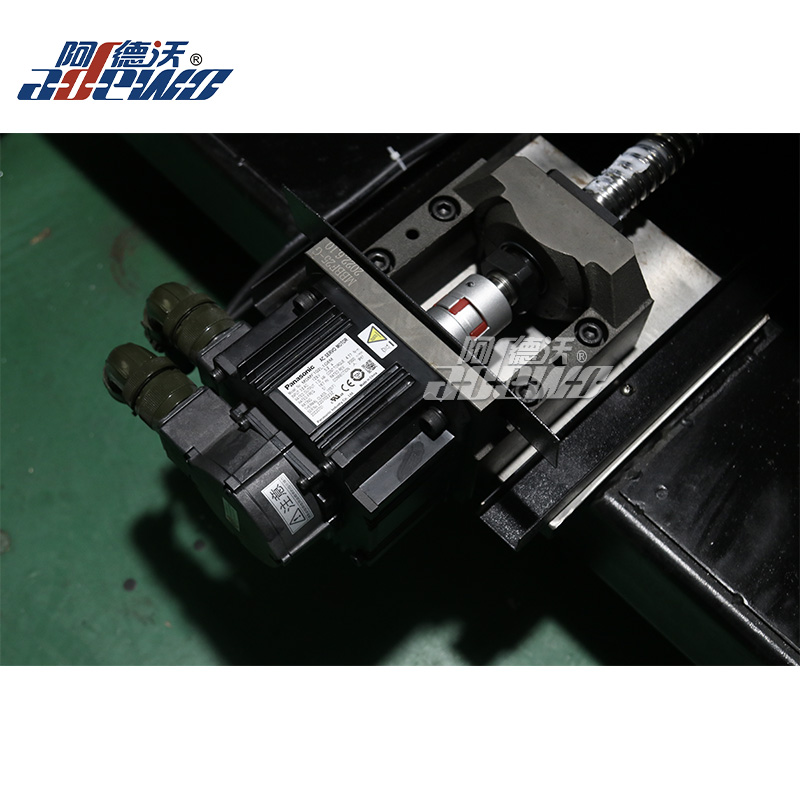

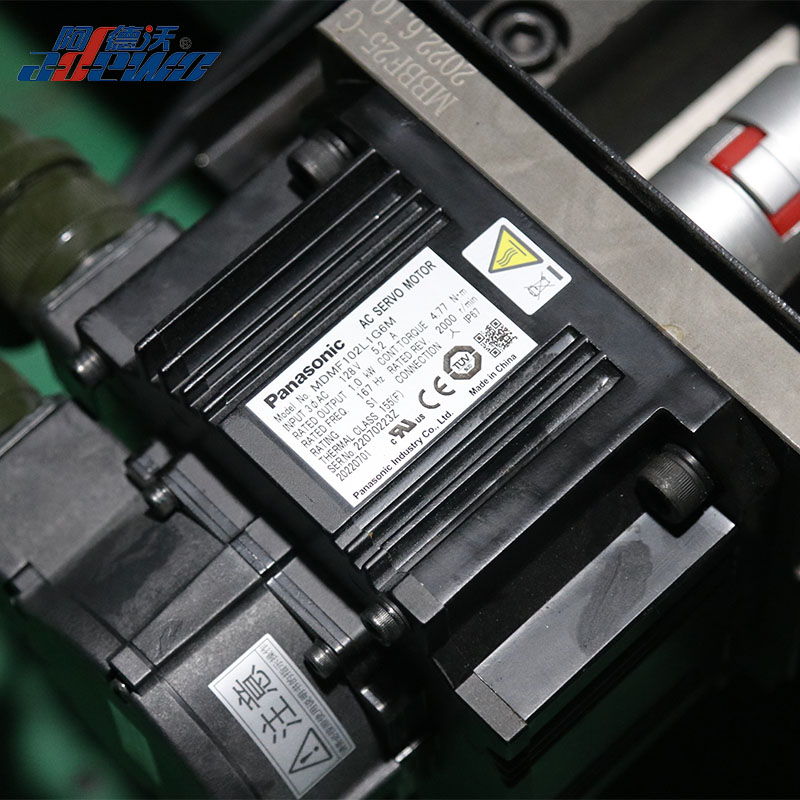

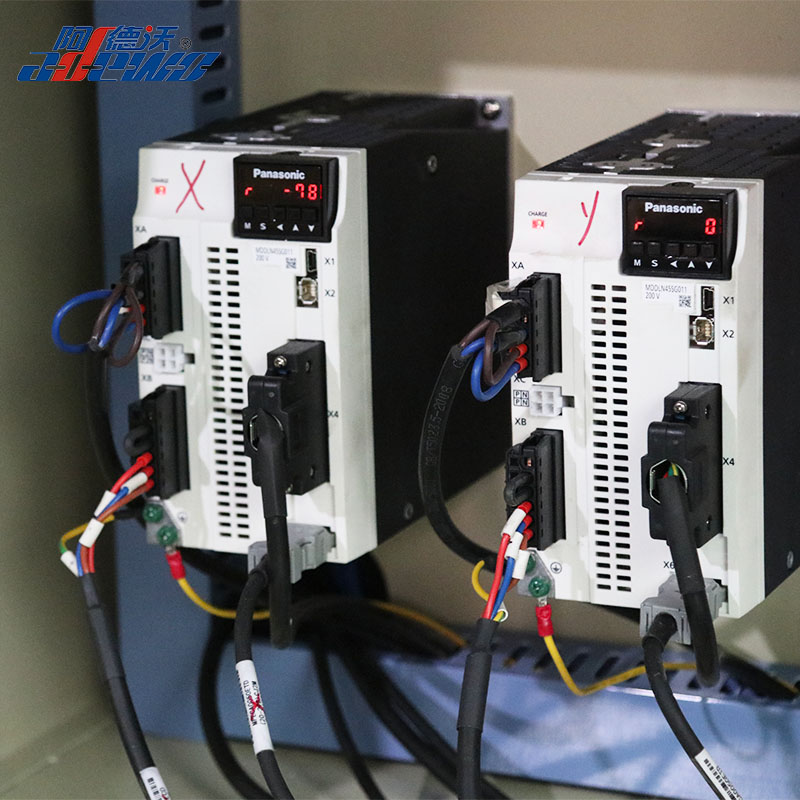

Driving system |
Servo motor system |
Cutting precision |
±0.05mm |
Figure format |
AL, DST, PLT, BMP, DXF |
Supporting software |
CorelDraw,AutoCAD,photoshop |
Cooling system |
Water cooling |
Operating temperature |
1℃~40℃ |
Protective gas |
Dry and oil-free air |

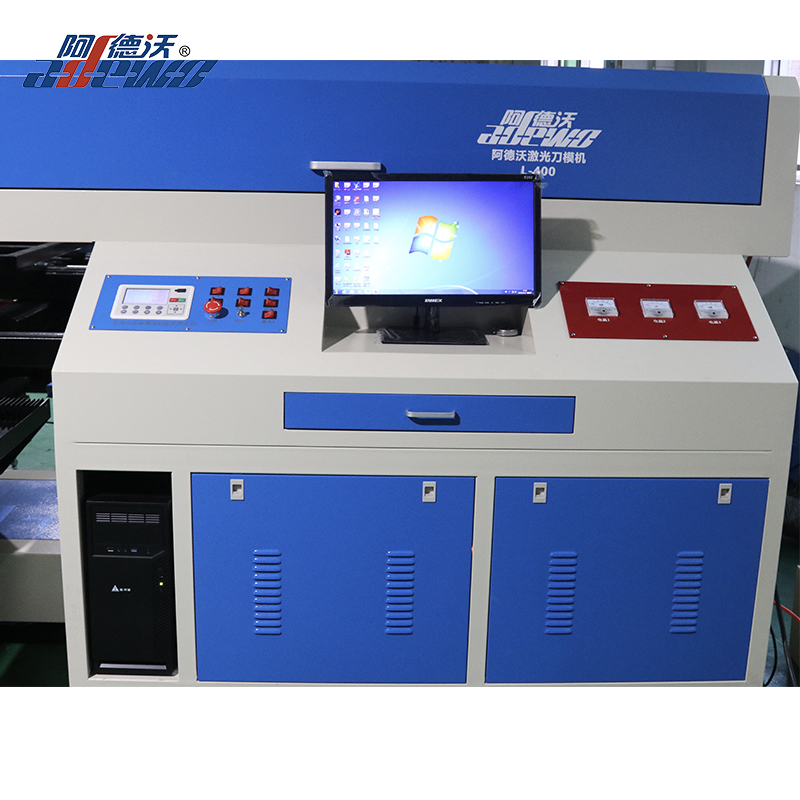

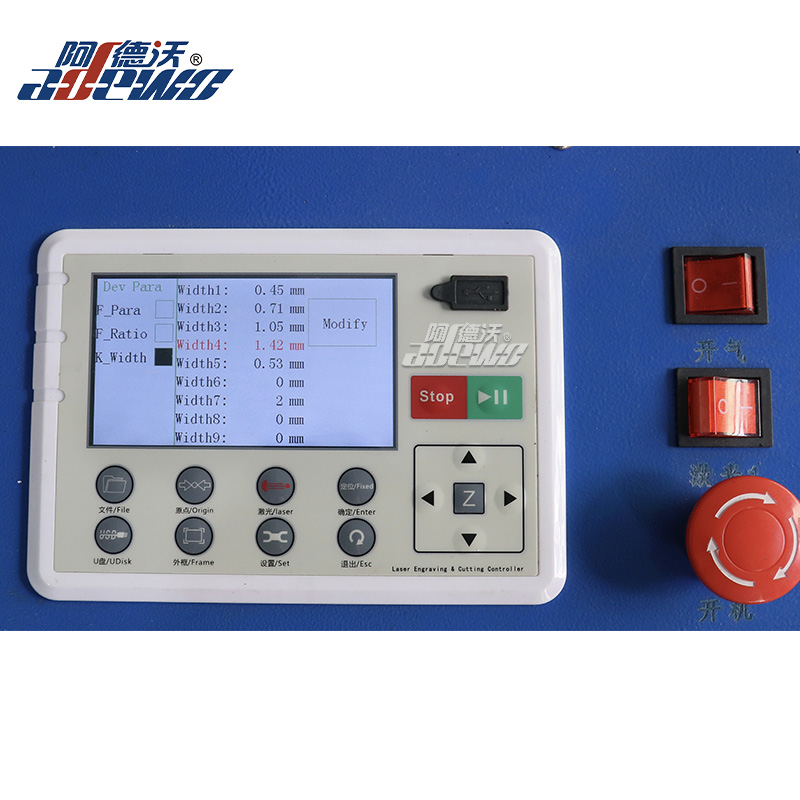

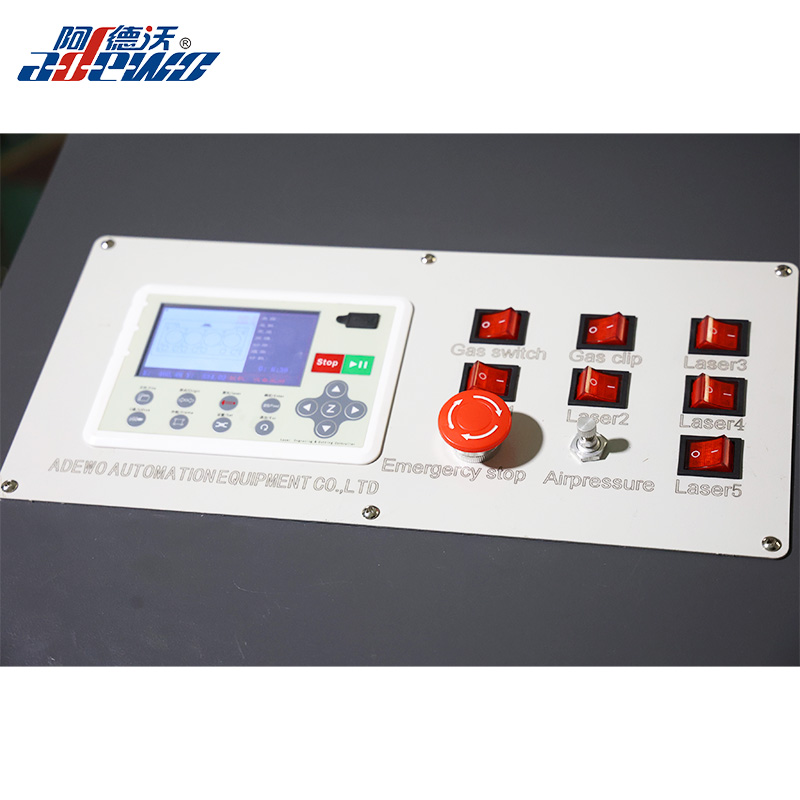

Numerical control panel |
LCD screen,Light-touched key-press off-line condition |
EMS memory |
Attached 32MB memory, can work under off-line condition |
Assistant equipments(Free) |
Industrial chiller, Exhaust fans,Computer system |
Power supply |
Single Phase220V,50Hz/60Hz 10A |
Machine size(stand still) |
L3000xW2250xH1600mm |
Machine size(working) |
L4000xW2250xH1600mm |
Machine weight |
1800kg |
H.S. Code |
8456110090 |
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
