(ABM-832A1) El modelo básico de la máquina de flexiones automáticas incluyó funciones: flexión, puente, labio y corte. Gros de regla de acero soportado 0.71,1.05 mm (2PT y 3PT), altura 8-32 mm. China Adewo ha tenido éxito para muchas compañías de fabricación e imprenta nacionales y extranjeras para proporcionar máquinas avanzadas de benderos de automóviles, soporte técnico rentable y excelente servicio de ventas.
(ABM-832A1)The Basic Model Auto Bender Machine

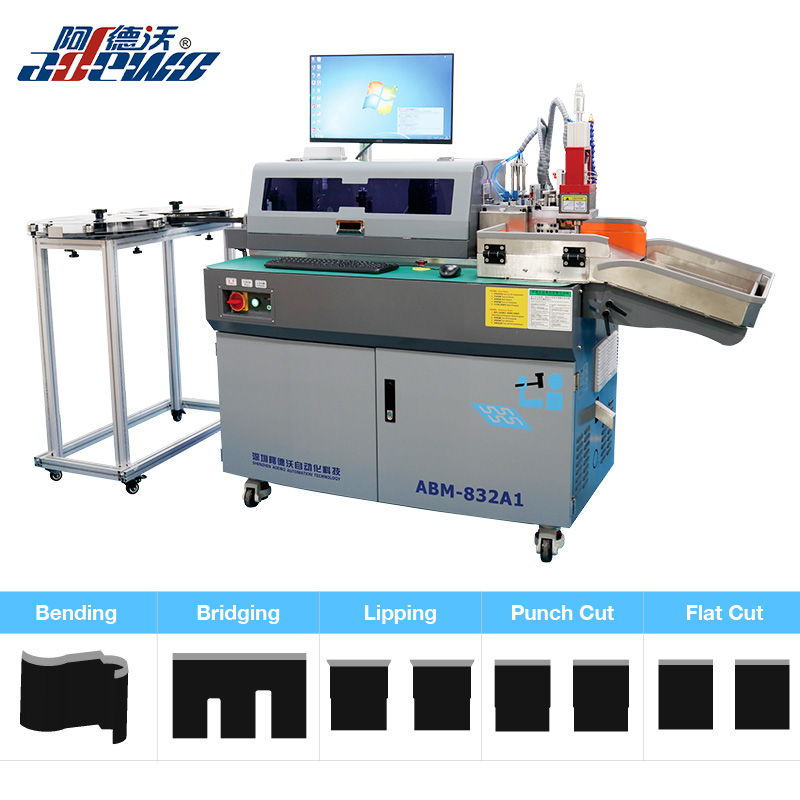

Picture of (ABM-832A1)The Basic Model Auto Bender Machine with Perforation for reference:
1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting

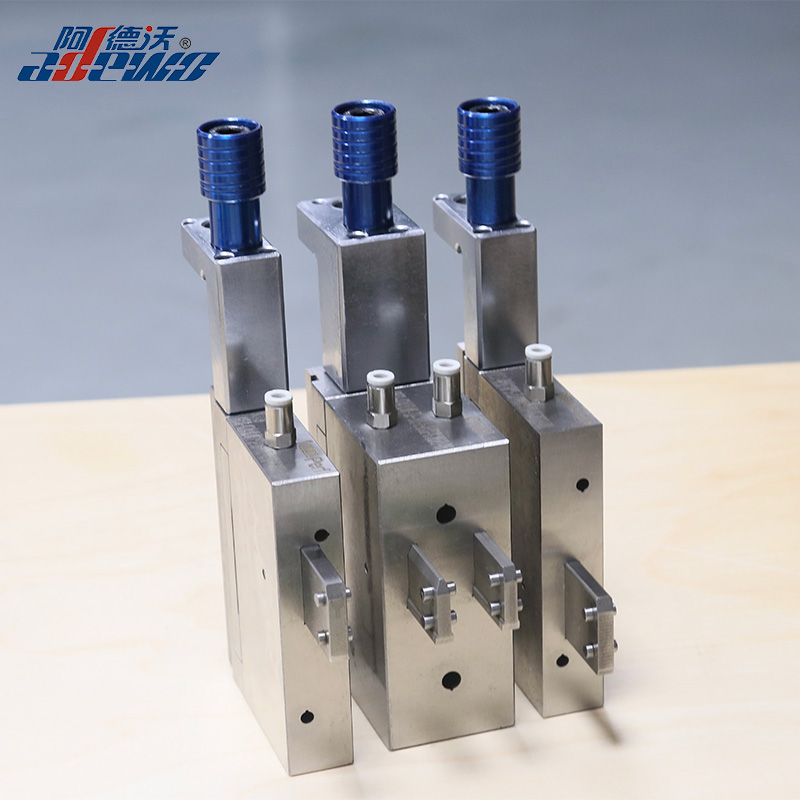

2.Multi-Punch tool for choice:Lipping,Mold Cut,Bridge,Hole or Perforation, independenttool, easy to replace.

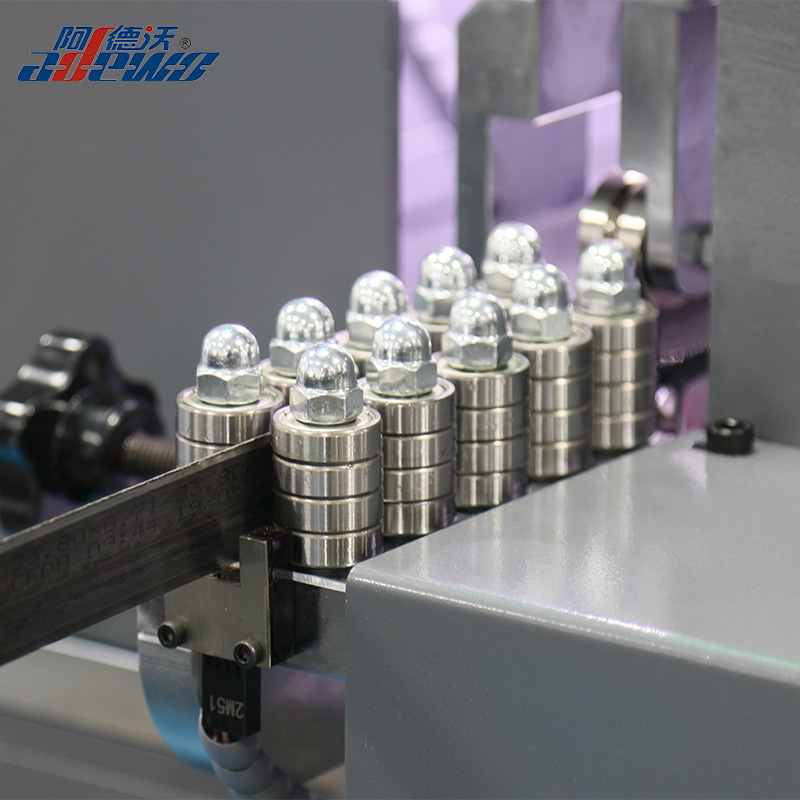

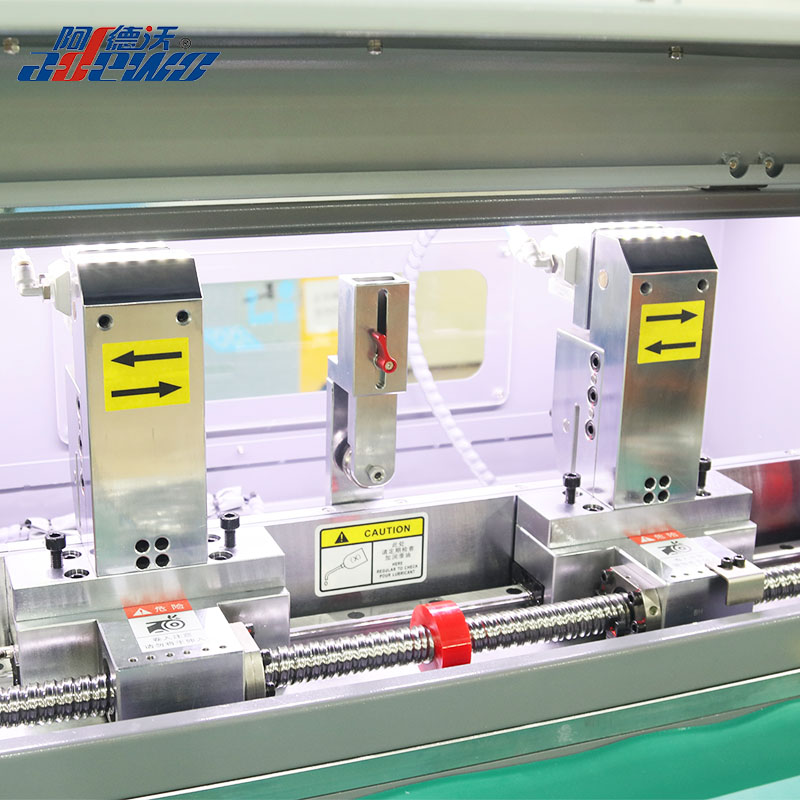

3.Double clamps,screw guide feeding continuously, improves work efficiency.
4.Small footprint,save space,cost effective.
|
Supported rule thickness(mm) |
0.45, 0.53, 0.71, 1.05mm |
|
Supported rule height(mm) |
8-32mm |
|
Bridge height |
18mm&15mm adjustable |
|
Bridge width |
Over 5mm any sizes available. (Can be customized) |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Basic Functions |
Bending,Bridge,Lipping,Cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
480KG |
|
Overall dimension |
2600x750x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
Our technical service is always available at services@china-adewo.com
